Laser cutting machine

Laser cutting machine – Types, Working, Advantages

Posted on May 5, 2023May 5, 2023 By Admin 1 Comment on Laser cutting machine – Types, Working, Advantages

Table of Contents

  • What is a Laser Cutting Machine?
  • Parts of a Laser Cutting Machine
  • Working of a Laser Cutting Machine
  • Advantages of Laser Cutting Machines
  • Types of Laser Cutting Machines
  • Applications of Laser Cutting Machines

What is a Laser Cutting Machine?

A laser cutting machine is a tool used to cut a variety of materials, including metals, plastics, wood, and fabrics, using a high-powered laser beam. The laser beam is focused through a lens onto the material, melting, vaporizing, or burning it to create a clean, precise cut. Laser-cutting machines are available in a range of sizes, from small desktop units to large industrial machines.

Parts of a Laser Cutting Machine

A laser cutting machine consists of several key components that work together to deliver precise and accurate cuts:

1. Laser Generator:

This is the heart of the laser cutting machine. It generates the laser beam, which is then focused and directed onto the material being cut.

2. Laser Cutting Head:

 The laser beam is directed onto the material using a cutting head. This head contains lenses that focus the beam onto the material and a nozzle that blows gas onto the material to aid in cutting and prevent the material from overheating.

3. Cutting Bed:

The cutting bed is the surface onto which the material being cut is placed. It is usually made of metal or another heat-resistant material and may be equipped with a suction system to hold the material in place.

4. CNC Control System:

The CNC (Computer Numerical Control) system is the brains of the machine. It controls the movement of the cutting head and the material being cut, ensuring precision and accuracy.

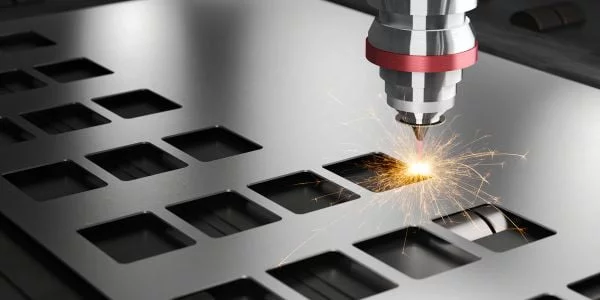

Laser cutting machine
Laser cutting machine

Working of a Laser Cutting Machine

The working of a laser cutting machine involves the following steps:

1. Designing the Cut:

The first step is to create a design using software such as CAD or CAM. This design is then uploaded to the CNC control system of the laser cutting machine.

2. Focusing the Laser:

The laser beam is focused using lenses to create a very small, intense beam of light.

3. Directing the Laser:

The focused laser beam is directed onto the material being cut by the cutting head.

4. Cutting the Material:

The laser beam vaporizes or melts the material, leaving a clean, precise cut.

Advantages of Laser Cutting Machines

1. High Precision:

 Laser-cutting machines offer a high level of precision, with cuts as narrow as 0.1mm, making them ideal for intricate designs and small parts.

2. Versatility:

 Laser-cutting machines can cut a variety of materials, including metals, plastics, wood, and fabrics, making them highly versatile.

3. Efficiency:

Laser-cutting machines are highly efficient and can cut materials quickly, reducing production time and costs.

4. No Contact Cutting:

Laser-cutting machines use a non-contact method, reducing the risk of damage to the material and minimizing waste.

Disadvantages of Laser Cutting Machines

1. High Initial Cost:

Laser-cutting machines can be expensive, with prices ranging from a few thousand dollars to hundreds of thousands of dollars.

2. Maintenance:

Laser-cutting machines require regular maintenance to keep them in good working condition, including cleaning, aligning, and replacing parts.

3. Limited Thickness:

While laser cutting machines can cut a variety of materials, they are limited in the thickness they can cut.

Types of Laser Cutting Machines

There are three types of laser-cutting machines: gas lasers, crystal lasers, and fiber lasers.

1. Gas Lasers:

Gas lasers use a mixture of gases, typically carbon dioxide (CO2) and nitrogen (N2), to create the laser beam. These lasers are primarily used for cutting thick materials, such as metals and plastics, and are known for their high power and efficiency.

2. Crystal Lasers:

Crystal lasers use a solid-state crystal, typically Nd: YAG or Nd: YVO4, to create the laser beam. These lasers are primarily used for cutting thin materials, such as fabrics and paper, and are known for their high precision.

3. Fiber Lasers:

Fiber lasers use a fiber optic cable to create the laser beam. These lasers are primarily used for cutting metals and are known for their high speed and efficiency.

Applications of Laser Cutting Machines

1. Industrial Manufacturing:

 Laser cutting machines are commonly used in the manufacturing industry to create parts for various products, such as automobiles, aircraft, and electronics.

2. Signage and Advertising:

Laser cutting machines are used to create precise and intricate designs for signage and advertising materials, such as billboards and logos.

3. Architectural Models:

Laser cutting machines are used to create detailed models of buildings and architectural designs.

4. Fashion and Textiles:

 Laser cutting machines are used in the fashion and textile industry to create intricate designs on fabrics, such as lace and embroidery.

Also, read PLA filament
